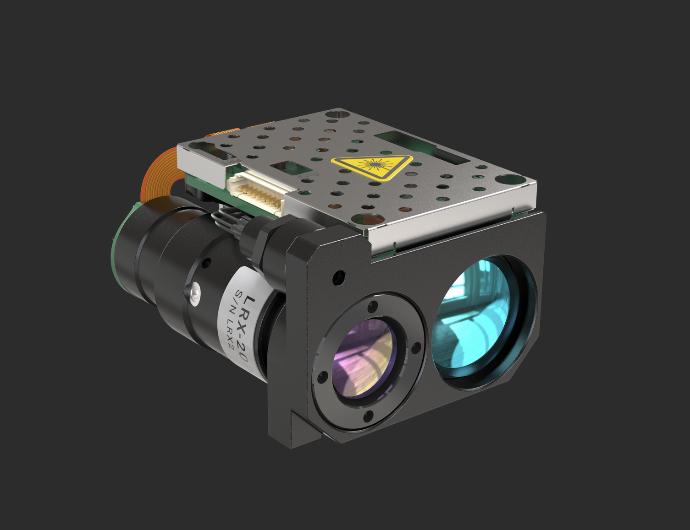

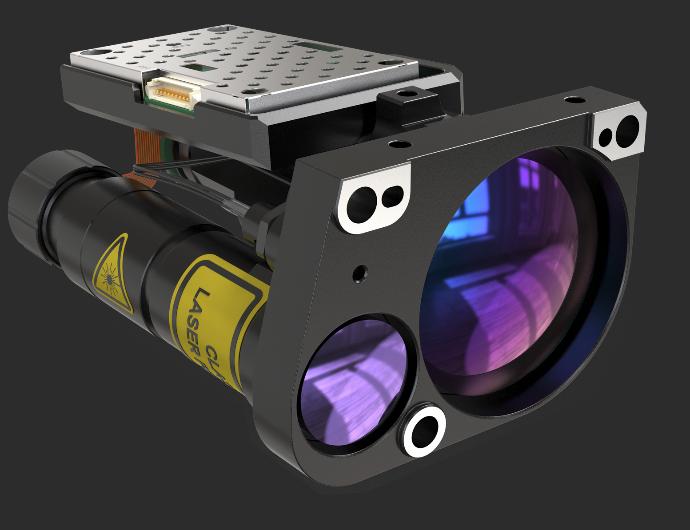

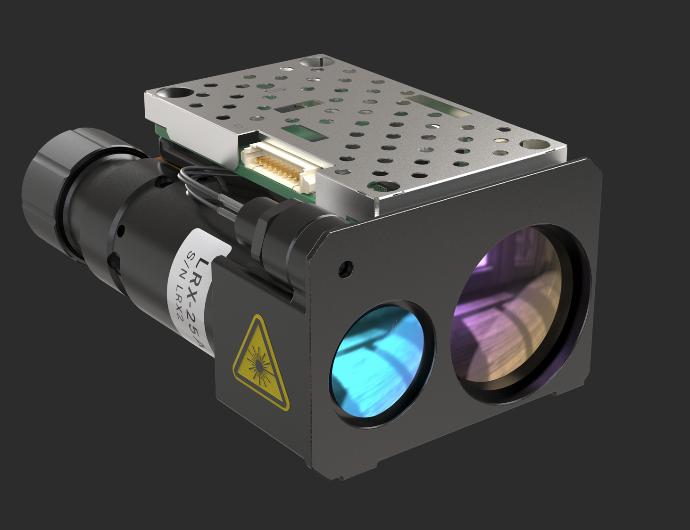

We offers a diverse range of laser rangefinder modules, utilizing pulsed time-of-flight technology to deliver precise distance measurements across various applications. These modules are designed to operate reliably under varying environmental conditions.
Features:
- Ranging Capability: Distances from several kilometers up to beyond 30 km, depending on the specific module
- Measurement Rates: Capable of 1 to 500 measurements per second
- Precision: Accuracy ranging from 0.01 to 0.5 meters
- Laser Characteristics: Eye-safe operation with wavelengths of 905 nm or 1550 nm
- Power Consumption: Designed for low energy usage, supporting battery operation
- Mechanical Design: Lightweight and compact form factor, suitable for harsh environments
Specifications:
- Ranging Capability: Varies from 1 km to 39 km (depending on model)
- Measurement Rates: Varies from 1 Hz to 500 Hz
- Precision: Range 0.01 m to 0.5 m
- Wavelength: 905 nm (for long-range) and 1550 nm (eye-safe, high-power models)
- Laser Class: Class 1 (eye-safe) and Class 1M (for longer distances)
- Beam Divergence: Range 0.25 mrad to 1.6 mrad
- Wider Beams: For observing objects in open areas (e.g., drones, boats)
- Power Consumption: < 3.6 W (operating), < 0.2 W (standby)
- Physical Dimensions: Width: 34 mm to 70 mm, Height: 22 mm to 52 mm, Length: 48 mm to 116 mm, Weight: 42 g to 250 g (depending on model)
- Interfaces: RS422, RS232, UART (3.3V CMOS)
For more information, please contact us.
