Our Laser Diode Drivers and Temperature Controllers deliver precise, reliable performance for advanced applications. The drivers offer accurate current regulation with built-in protection, while the controllers ensure stable temperature management for TECs and heaters. Both solutions are designed for optimal efficiency and long-term reliability in research and industrial environments.
| Series / Model | Mount Type | Output Current | Supply Voltage | Modes | Key Features |
|---|---|---|---|---|---|

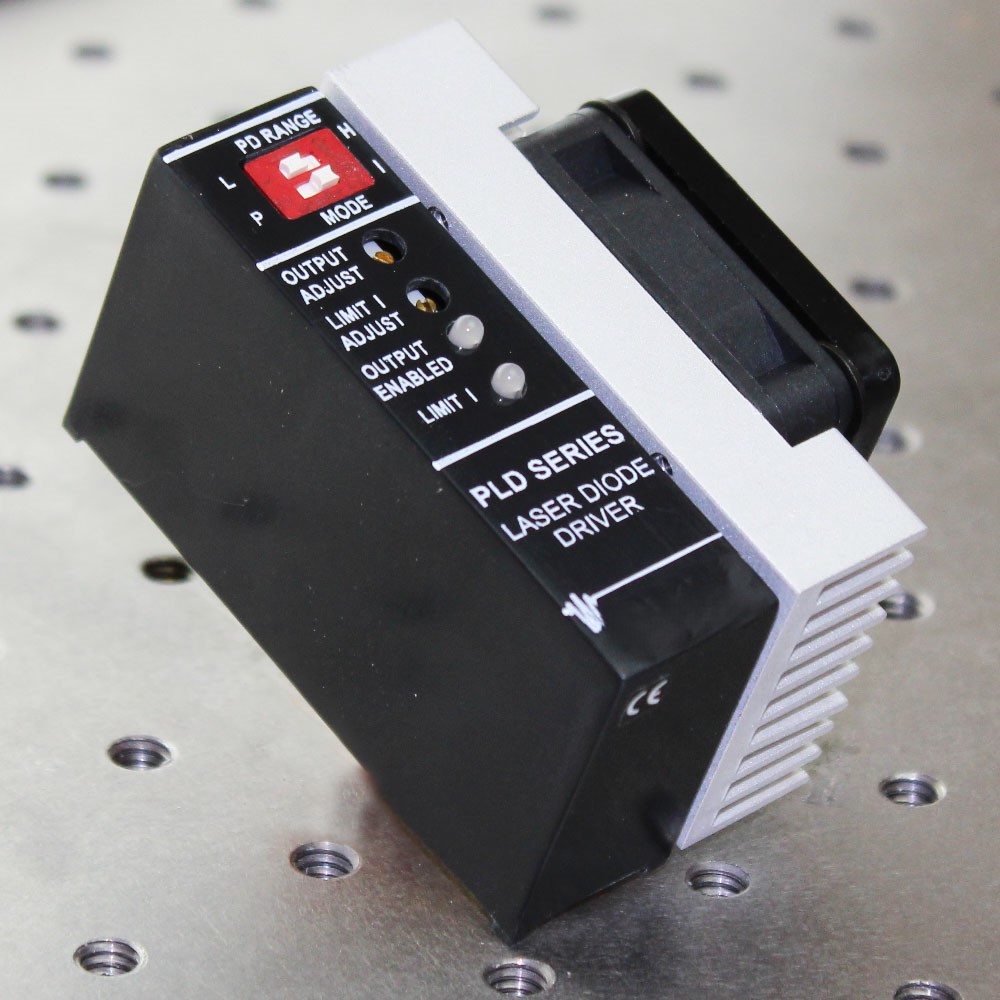

| PLD Series | PCB‑mount (SIP/DIP) | 0.2 A, 0.5 A, 1.25 A, 5 A, 6.5 A, 10 A, 12.5 A | +5 V (laser up to 30 V) ([AMS Technologies][1], [AMS Technologies][2]) | Constant Current / Power | Slow‑start, latching current limit, relay protection, low noise, heatsink on high‑current versions, remote control |
| PLDxK‑CH Series | Chassis‑mount module | 5 A, 10 A, 12.5 A | +5 V (plus separate laser supply) | Constant Current / Power | Trimpots, LEDs, safety interlocks, relay output, USBKIT control available |

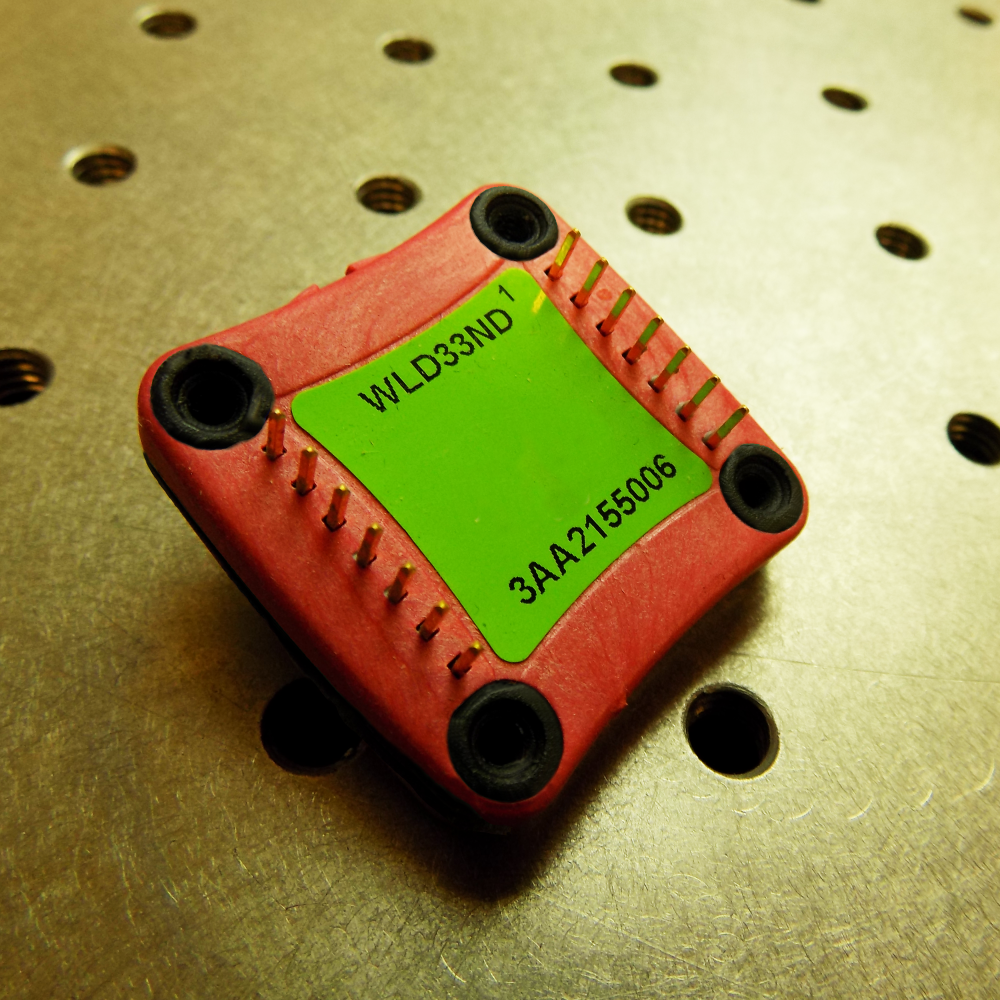

| WLD33ND Series | PCB‑mount DIP (14‑pin) | Up to 2.2 A; 3 A variant | +5 to +12 V | Constant Current / Power | Slow‑start, over‑temp shutdown, TTL‑shutdown, low noise, DIP package, recharge resister range adjustable, 2 MHz bandwidth |
| WLD33ND-3A, WLD33ND‑2L, 3L, HB variants | PCB‑mount DIP (14‑pin) | Up to 3 A or lower‑noise variants (HB ≈3.6 V battery use) | +5 to +12 V | Constant Current / Power | Enhanced low‑noise, safe operation @ low voltage, battery compatibility |
| WLD3343 | PCB DIP layout | Up to 2.2 A | +5 V (up to \~12 V possible) | Constant Current / Power | Predecessor of WLD33ND, general‑purpose, slow‑start, low cost |
| LDTC Series | Benchtop or chassis module | 0.5 A (LDTC0520), 1 A (LDTC1020) for laser; ±2.2 A for TEC control | +3 to +12 V (TEC 4.5‑30 V) | Laser + TEC control | Integrated low‑noise FL500 driver + WTC3243 TEC controller, slow‑start, brownout protection, remote TTL, dual power supplies, remote control via USBKIT |
| Series / Model | Mount Type | Output Current | Supply Voltage | Temperature Stability | Key Features |
|---|---|---|---|---|---|
| LDT‑5910C‑220V | Benchtop unit | ±4 A | 220 VAC | ±0.002 °C long‑term | USB & GPIB; PID + auto‑tune; PID front panel |
| PTCxK‑CH Series | Chassis‑mount module | ±2.5–10 A (up to 20 A in master/booster combo) | 5–30 VDC | 0.0012 °C | USB optional; PI control with smart integrator; adjustable bias & current limits |

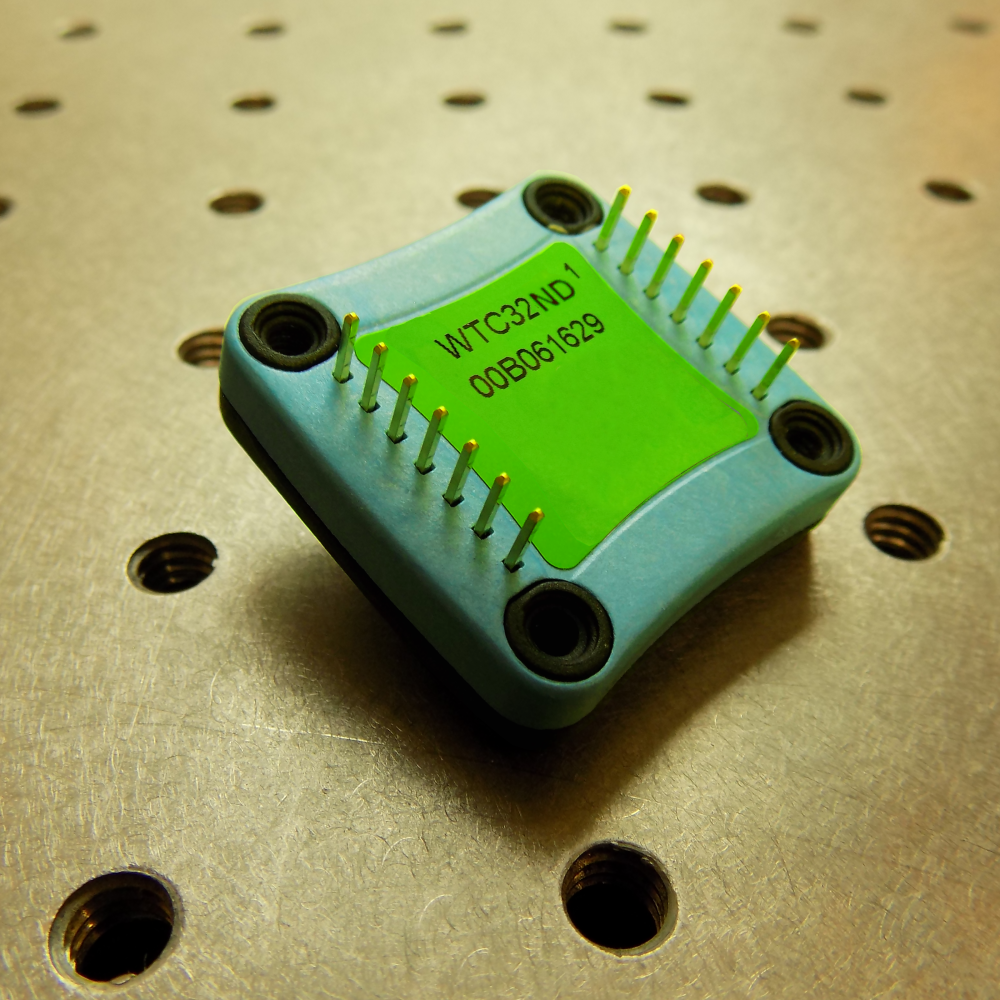

| WTC32ND | PCB‑mount DIP | ±2.2 A | 5–30 VDC | 0.0009 °C | PI loop; evaluation board; external tuning via trimpots |

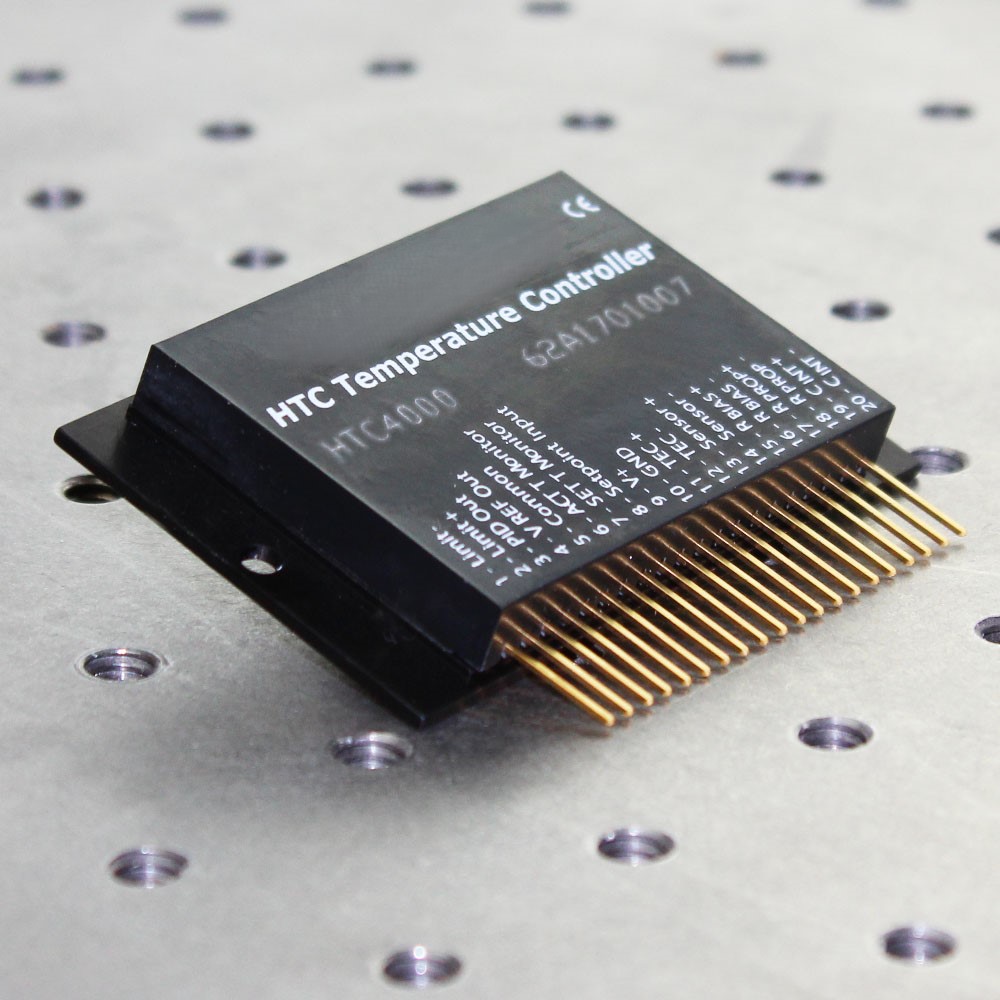

| HTC Series | SIP PCB-mount | ±1.5, ±3, ±4 A | 5–12 VDC (up to 30 V on request) | 0.0009 °C | Low‑profile, SIP; adjustable bias, P/I gains |
| WTCP5V5A | PCB‑mount module | ±5 A | 4.5–5.5 VDC | 0.001–0.002 °C | PWM-based; high efficiency; evaluation board support |
| PID1500 | PCB‑mount | ±1.5 A | 5–12 VDC | 0.003 °C | Onboard P‑gain potentiometer; heatsink; evaluation board |

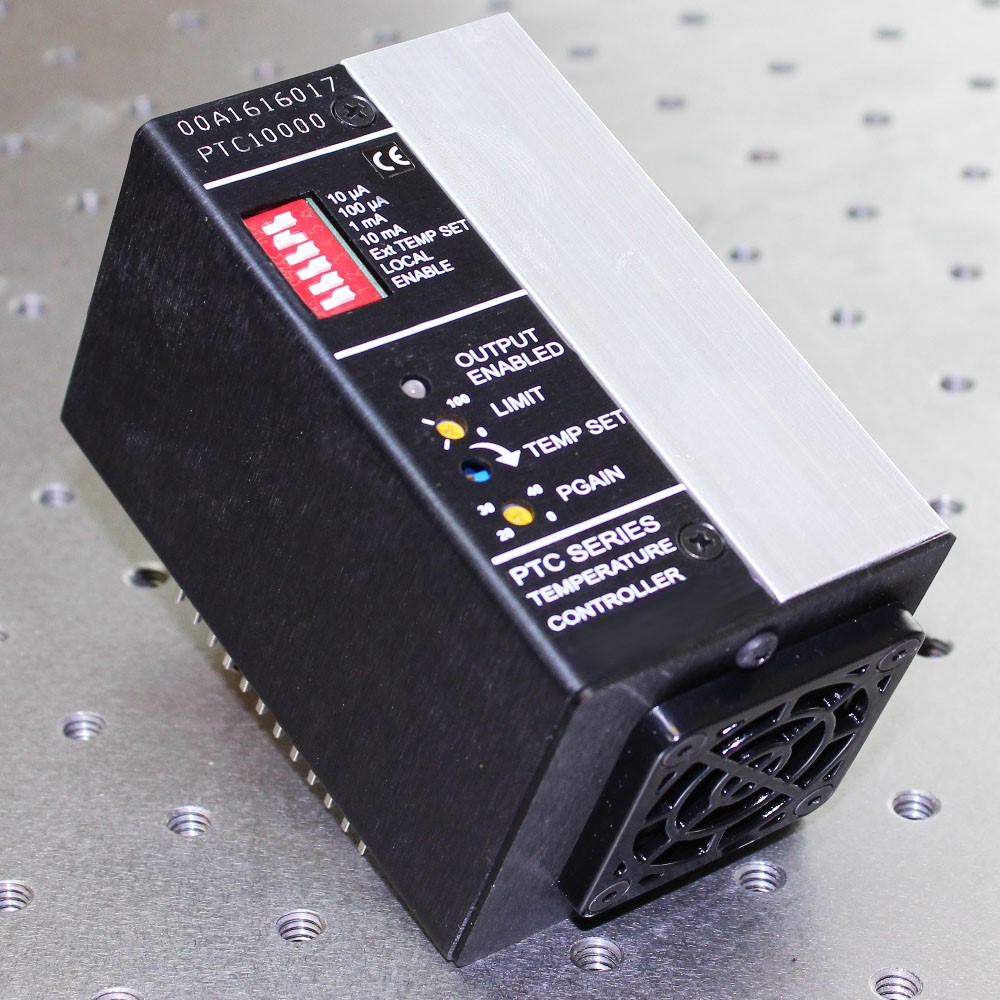

| PTC Series | SIP PCB‑mount | ±5 or ±10 A | 5–30 VDC | 0.0012 °C | Based on PTC‑CH; smart integrator; bias & current limit adjustability |
| TC15 LAB | Rack-mount instrument | ±15 A | up to 20 V compliance | Greater than 0.0009 °C | IntelliTune PID; touchscreen + USB/Ethernet; safety features |
