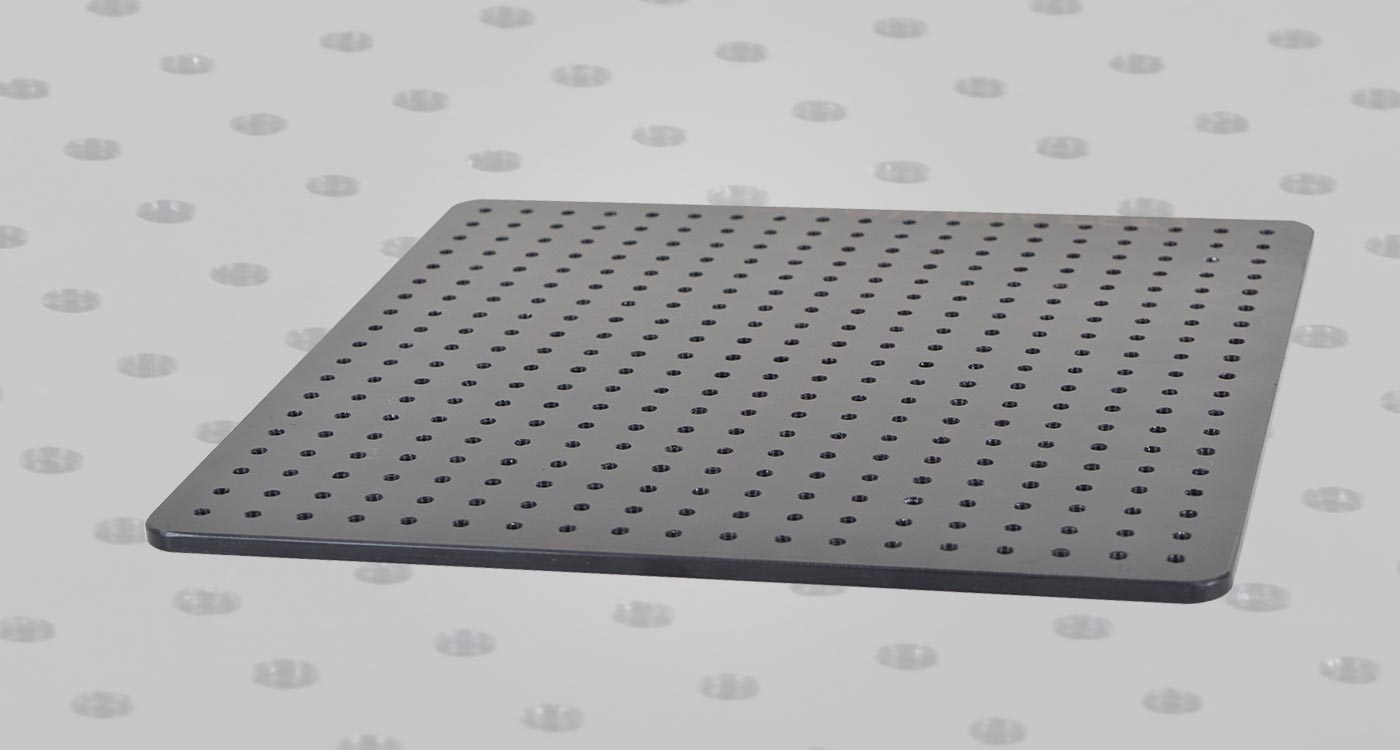

We provide high-precision breadboards and optomechanical components for advanced optical applications. Our Standard Solid Breadboards (BB Series) offer exceptional stability with M6 tapped holes, while the compact Mini Breadboards (MBB Series) provide space-efficient solutions with M4 tapped holes. We also offer a wide range of optomechanical components, including mounts, post systems, and manual stages — with custom options available.
| Category | Thickness | Hole Grid | Material & Finish | Flatness / tolerance | Size Range |
|---|---|---|---|---|---|

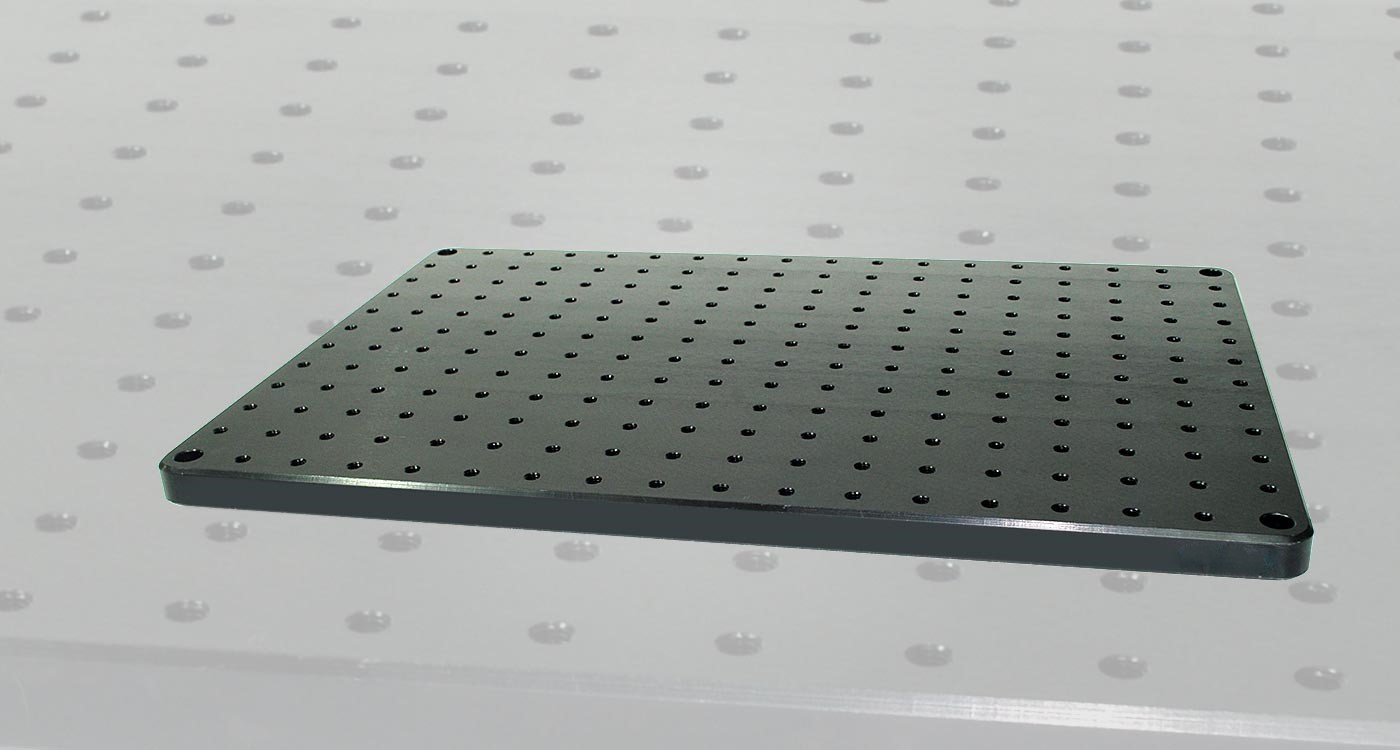

| Standard Solid (BB) | 10 mm | M6 @25 mm | Aluminium, black anodized | ±0.15 mm (over 300 × 300 mm), tolerance ±0.3 mm | 100×100 to 600×400 mm |
| Heavy Duty (HBB) | 18 mm | M6 @25 mm | Aluminium, black anodized | Flatness ±0.15 mm; tolerance ±0.3 mm | 250×250 to 500×500 mm |

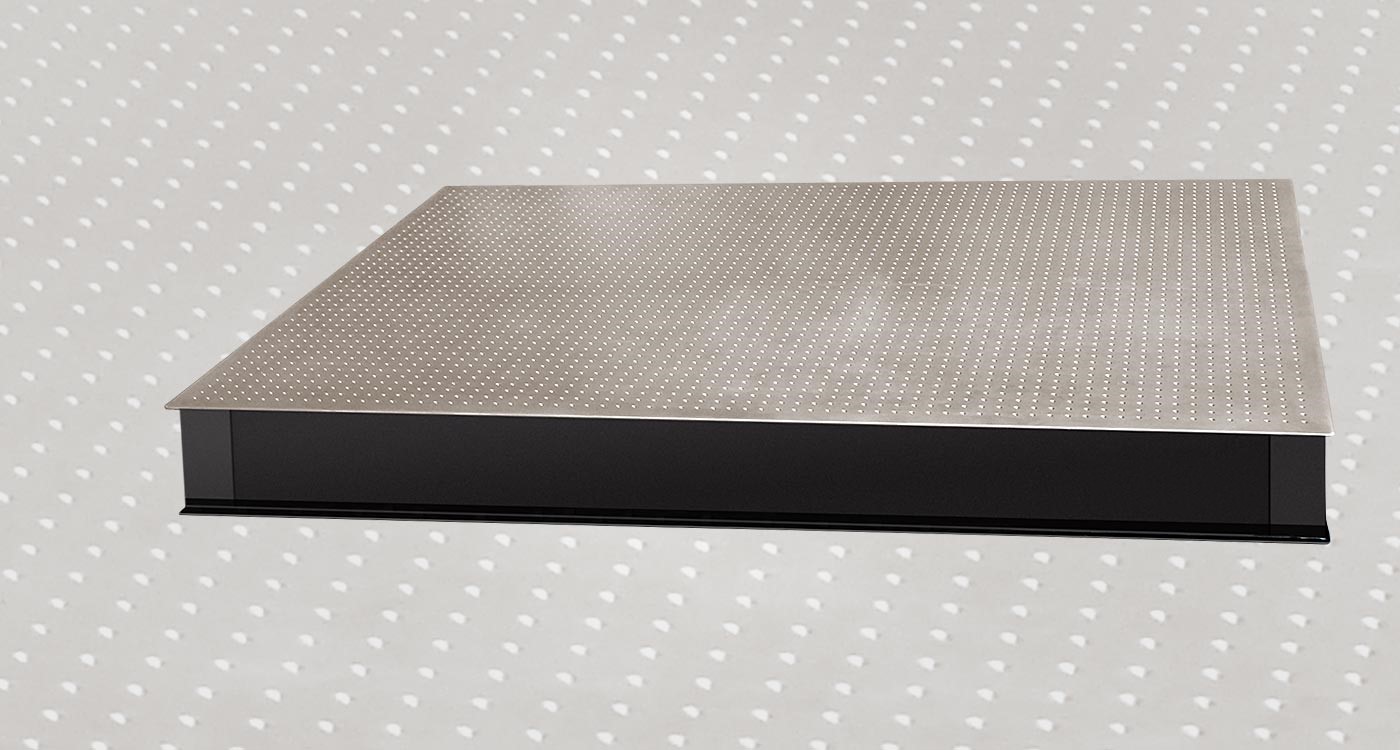

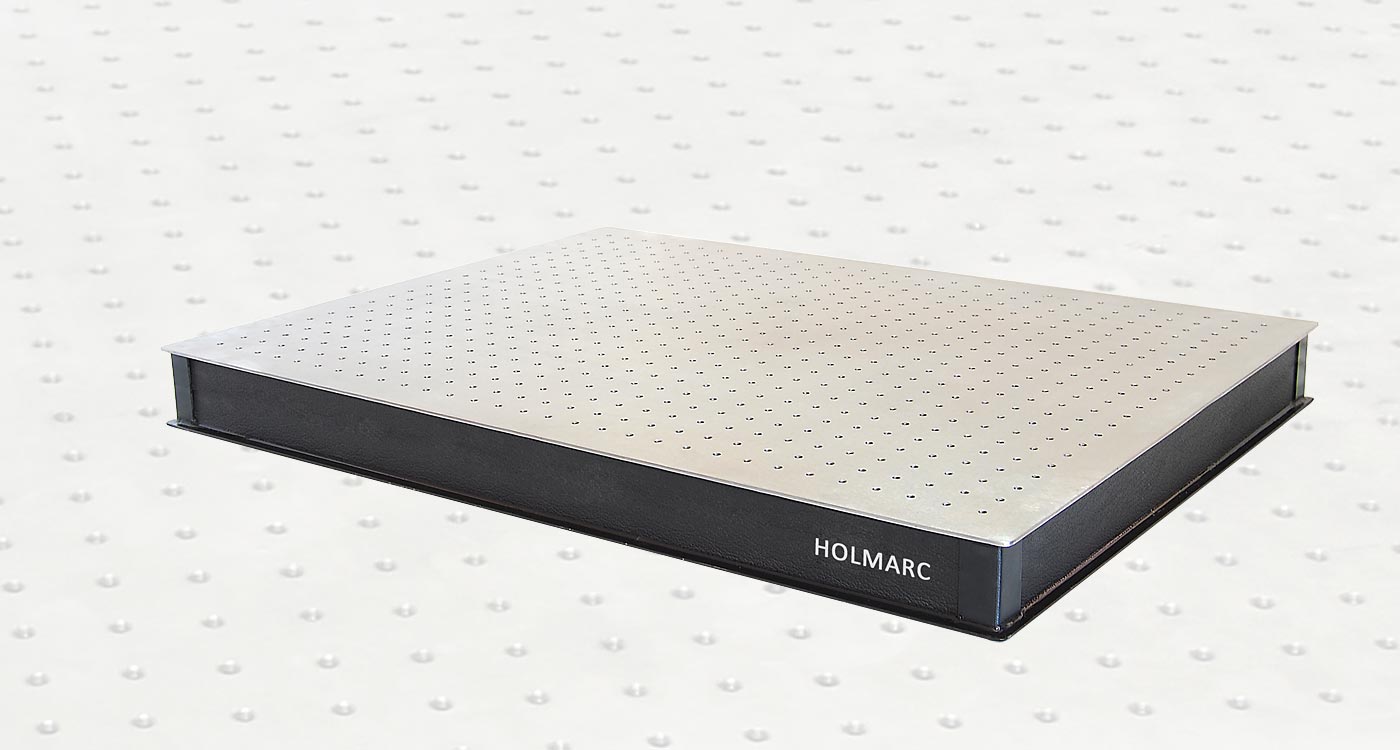

| Honeycomb Breadboards | 60–100 mm | M6 @25 mm | SS410 top skin, epoxy-coated steel bottom, aluminum honeycomb core | Flatness ±0.1 mm over 300 × 300 mm | 600×300×60 to 1800×1200×100 mm |

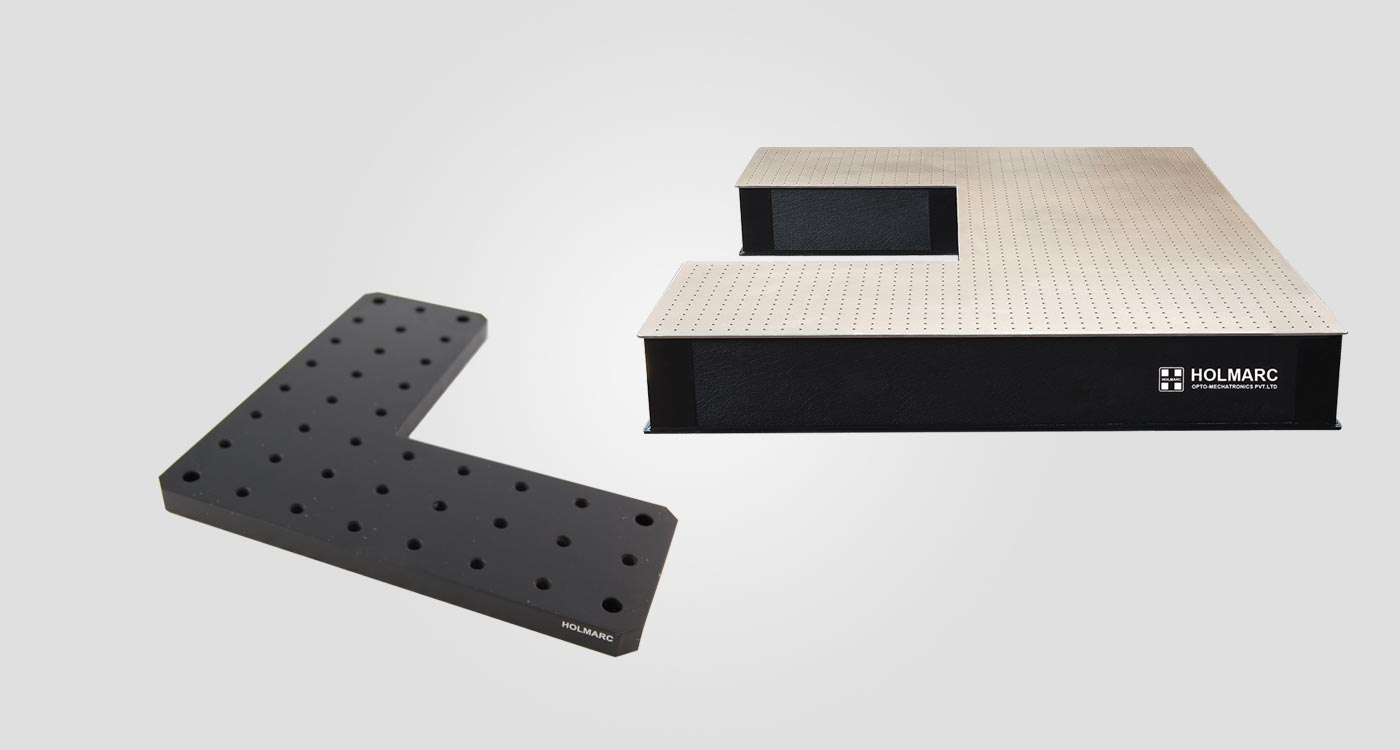

| Custom Breadboards | ------ | Custom patterns | Corrosion-resistant, fine finish | ------- | Tailored to user specifications p/u |
| Category | Product Types | Common Features | Applications |
|---|---|---|---|
| Optics Mounts | Rigid Mounts, Mirror Mounts, Kinematic Mounts | Precision tilt/rotation, optic size 12.5–75 mm, micrometer or screw-driven options | Holding and adjusting lenses, mirrors, optics |
| Post Mounting | Post Holders, Bases, Swivel Bases | M6 or 1/4"-20 threads, adjustable height, magnetic/non-magnetic bases | Mounting optical components at desired height |
| Manual Stages | Kinematic Platforms, Translation & Rotation Stages | Micrometer screws, tilt ±3°, travel 6 mm+, M4/M6 grid holes | Precision alignment and motion control setups |
